Full fitting instructions

AF1-9 Hidden tray fitting instructions


- The following steps are a guide to the installation of the Aqua floor tanking system. If you have any questions please contact livinghouse.co.uk




- Ensure joists are in sound condition and have a maximum distance of 400mm centres. It is important that floor joists are level in all directions.


- Rest the wetroom tray onto the joists into the desired position. Ensure the waste position of the tray does not interfere with the joist lay out.




- Mark the hidden tray position on the joists then remove the tray leaving a clearly marked guide.


- Install timber supports between the joists ready to install the tray sub-floor. Install a support for the drain waste at 88mm below the top of the joists.




- The sub-floor support battens should be installed 24mm below the top of the joists.


- Place the drain body with the sealing flange into position and connect your waste pipe ensuring there is sufficient fall to allow water to drain away correctly.




- Install 22mm moisture resistant chipboard to the joists leaving the marked hidden tray area clear.


- Install 24mm marine plywood between the joists screwing to the timber supports. Allow a hole for the drain.




- Place the shower tray into position and check heights. The tray should be 6mm proud of the surrounding chipboard. Remove tray and apply flexible tile adhesive to the sub-floor.


- Install the tray with a 100% bond between the two surfaces. This will ensure the hidden tray is flat and water will drain correctly.




- The tray should now sit 8mm proud of the surrounding chipboard. This will allow the tanking boards to be installed flush with the tray.


- Screw the top of the drain to the trap through the top of the tray, use the supplied plastic tightening key. Insert the removable odour barrier.




- If waterproof tanking boards are being used on the walls it is advised that a minimum board thickness of 10mm is required.


- Using a flexible adhesive install the tanking boards to the chipboard sub-floor ensuring a 100% bond between surfaces.

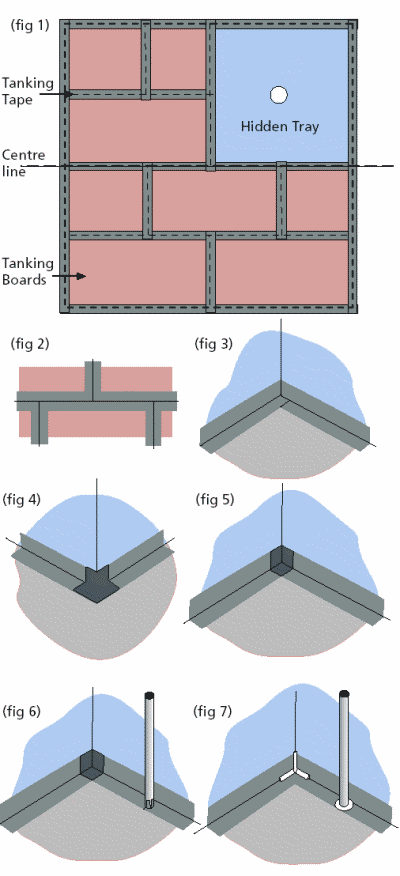

- The installation of the wetroom tanking boards should be fitted in a brick bond pattern and be installed flush to each other and the shower tray.


- Using the primer supplied, paint over all joints between the tanking boards, tray and walls 75mm either side of the joints. Allow a minimum of 4 hours to dry.




- Apply the tanking tape supplied to the primed joints over the floor area ensuring good adhesion between the surfaces.


- Ensure all floor joints have been covered including around tray edge.




- Fit the pre-made corners to your wet room using the internal and external corners supplied.


- Apply the tanking tape to wall and floor junction. The tape must be folded at a 90 degree angle.




- If waterproof boards are being used on the walls then repeat the steps to prime and seal the joints as shown for the floor and tray.


- Depending on your tiling requirements you may decide to tile the walls prior to installing the floor tiles or vice versa.




- When installing the floor tiles ensure you use a good quality tile adhesive and the tiles are 100% bonded.


- Please note larger tiles will require cutting at diagonals (as shown in picture) This will allow the tiles to follow the falls of the wet room tray.




- Smaller tiles (as shown in picture) can easily follow the falls of the hidden shower tray without the need for diagonal cutting.


- Livinghouse can also supply all of your designer bathroom product requirements such as wetroom screens, sanitary ware and towel rails.




- Thank you for choosing the Aqua floor tanking system. If you have any questions on the fitting of the wet room tanking system please contact Livinghouse.co.uk

Contact information
Tel: 01722 415000
Fax: 01722 414816
E-mail: sales@livinghouse.co.uk
Website: www.livinghouse.co.uk
Wetroom website: www.wetrooms.livinghouse.co.uk
For a video on the AquaFloor wetroom installation please visit our website www.livinghouse.co.uk/acatalog/Videos.html

Easy check list for installing the AquaFloor wetroom tanking system

1. Ensure joists are in good sound condition
2. Joists should have a maximum of 400mm centres
3. Make sure your joists are level in all directions
4. Rest the tray onto the joists into the desired position
5. Ensure the waste position of tray does not interfere with the joist lay out
6. Mark the tray position on the joists
7. Remove the tray leaving the clearly marked area visible
8. Install supports between the joists ready to install a tray sub-floor
9. Install a support for the waste / trap
10. Allow for the depths of both the sub-floor and waste when installing the supports
11. Place the bottom section of the waste / trap into position onto the installed support
12. Connect a waste pipe to the trap
13. Allow sufficient fall along the waste pipe to allow water to drain away correctly
14. Install moisture resistant chipboard to the joists leaving the marked tray area clear
15. Install the tray sub-floor to the supports allowing for a hole for the tray waste
16. The top of the waste should not finish proud of the tray sub-floor
17. Rest the tray onto the installed sub-floor and check the heights
18. Take into consideration the depth of the adhesive to be used in the installation
19. The final tray height should be 8mm higher than the installed chipboard *
20. Remove the tray
21. Apply a good quality flexible tile adhesive to the sub-floor
22. Install the tray onto the adhesive ensuring a 100% bond between the two surfaces
23. Check heights again and the tray should sit 8mm proud of the surrounding chipboard *
24. Screw the top section of the waste through the tray into the bottom section of the waste
25. A plastic waste tightening key is supplied with the waste kit to do this
26. Insert the removable odour barrier into the waste body
27. Tanking boards may be used on the walls depending on your fitting requirements
28. A minimum board thickness of 10mm is recommended for the walls
29. Using a good quality flexible tile adhesive install the tanking boards to the chipboard floor
30. Make sure the tanking boards are 100% bonded to the chipboard
31. When installing the tanking boards it is best to lay them in a brick bond pattern
32. Allow the adhesive to dry
33. Paint the joints on the floor using the supplied primer including around the edge of the room
34. Paint a minimum of 75mm either side of the joints
35. Allow a minimum of 4 hours to dry
36. Apply the supplied tanking tape over the primed joints ensuring good adhesion
37. Fit the pre made corners to your room where necessary
38. Both internal and external corners are supplied with the tanking kit
39. Use the tanking tape to seal around the edge of the room
40. The tape can be folded 90 degrees to be secured water tight to the wall and floor
41. If using tanking boards on the wall, repeat the steps for priming and fitting the tanking tape
42. Depending on tiling preferences you may decide to tile the walls prior to the floor tiles
43. Install your floor tiles using a good quality flexible tile adhesive
44. Ensure the tiles are fitted with a 100% bond between the tiles and tanking boards
45. You may need to cut the tiles within the tray area to follow the natural slope of the tray
46. Alternatively smaller tiles such as mosaics can be used without the need for cutting

* Assuming Livinghouse standard 6mm thick tanking boards for the floor are being used.

- The above instructions are assuming a complete Aquafloor tanking kit system is being installed
- The Aqua floor tanking system is available as a tray only kit, 6m2 or 10m2 kits
- The Aqua floor tanking system is suitable for both ground and upper floor installation and is also suitable for concrete sub-floors

AF10 Hidden tray fitting instructions


- The following steps are a guide to the installation of the Aqua floor tanking system with long channel drains. If you have any questions please contact livinghouse.co.uk




- Ensure joists are in sound condition and have a maximum of 400mm centres. It is important that joists are level in all directions.


- Rest the linear drain shower tray onto the joists into the desired position. Ensure the waste position of the tray does not interfere with the timber joists.




- Mark the hidden tray position on the joists and remove the tray leaving a clearly marked guide.


- Install timber supports to the joists ready to install the timber sub-floor. Tray sub-floor supports should be installed 24mm below the top of the joists.




- Install a support for the tray drain and trap 125mm below the top of the joists.


- Additional supports should be installed around the linear shower drain opening. Install pipe work into the floor ready to connect to the long channel drain.




- Install 22mm moisture resistant chipboard to the timber joists leaving the marked wetroom tray area clear.


- Install 24mm marine plywood between the timber joists, screwing to the supports. Allow a hole for the long channel waste.




- Position the shower waste and connect the drain pipe. Ensure that the drain body and rubber seal is not proud of the plywood sub-floor.


- Place shower tray into position. The installed tray should be 6mm above the chipboard. Remove linear tray and apply flexible tile adhesive to the sub-floor of the long channel tray




- Install the shower tray making sure there is a 100% bond between the two surfaces. This will ensure the channel tray is flat and water will drain correctly.


- The tray should sit 8mm proud of the surrounding chipboard. This will allow the waterproof tanking boards to be installed flush with the walk-in tray.




- Secure the long channel drain to the shower tray. Now screw the top of the drain to the trap through the hole of the channel drain body. Insert the odour barrier into the waste.


- Using a flexible adhesive install the tanking boards in a brick bond pattern to the chipboard sub-floor. Ensure a 100% bond between the two surfaces.




- You may decide to install waterproof tanking boards to the walls depending on your wetroom requirements.


- Using the primer supplied, paint over the joints between the tanking boards, hidden tray and walls. Paint 75mm either side of the joints. Allow a minimum of 4 hours to dry.




- Apply the supplied tanking tape to all primed joints ensuring good adhesion between the surfaces by applying pressure to the tape.


- Ensure all floor joints have been covered, including around the flush wet room tray.




- Fit the pre-made corners to the wet room. Both internal and external corners are supplied.


- Use the tanking tape to seal around all edges of the room. The tape must be folded into a 90 degree angle securing to both the floor and walls.




- If waterproof boards are being used on the walls then repeat the steps to prime and seal the joints as shown for the floor and tray.


- Depending on your tiling requirements you may decide to tile the walls prior to installing the floor tiles or vice versa.




- When installing the floor tiles ensure you use a good quality tile adhesive and the tiles are 100% bonded.


- Please note larger tiles will require cutting at diagonals to the long channel waste. (as shown in picture) This will allow the tiles to follow the falls of the shower tray.




- Smaller tiles (as shown in picture) can easily follow the falls of the tray without the need for diagonal cutting.


- Livinghouse can also supply all of your designer bathroom product requirements such as shower screens, toilets, wash basins and towel rails.




- Thank you for choosing the Aqua floor tanking system. If you have any questions on the fitting of the wet room tanking system please contact Livinghouse.co.uk

Easy check list for the installation of a long channel drain wetroom system

1. Ensure joists are in good sound condition
2. Joists should have a maximum of 400mm centres
3. Make sure your joists are level in all directions
4. Rest the tray onto the joists into the desired position
5. Ensure the waste position of tray does not interfere with the joist lay out
6. Mark the tray position on the joists
7. Remove the tray leaving the clearly marked area visible
8. Install supports between the joists ready to install a tray sub-floor
9. Install a support for the waste / trap
10. Allow for the depths of both the sub-floor and waste when installing the supports
11. Install pipe work into required position
12. Allow sufficient fall along the waste pipe to allow water to drain away correctly
13. Install moisture resistant chipboard to the joists leaving the marked tray area clear
14. Install the tray sub-floor to the supports allowing for a hole for the tray waste
15. Position the waste body in place and connect to the installed pipe work
16. The top of the waste should not finish proud of the tray sub-floor
17. Rest the tray onto the installed sub-floor and check the heights
18. Take into consideration the depth of the adhesive to be used in the installation
19. The final tray height should be 8mm higher than the installed chipboard *
20. Remove the tray
21. Apply a good quality flexible tile adhesive to the sub-floor
22. Install the tray onto the adhesive ensuring a 100% bond between the two surfaces
23. Check heights again and the tray should sit 8mm proud of the surrounding chipboard *
24. Secure the grate casing to the shower tray
25. Screw the top of the waste into the waste body through the casing
26. Insert the removable odour barrier into the waste body
27. Tanking boards may be used on the walls depending on your fitting requirements
28. A minimum board thickness of 10mm is recommended for the walls
29. Using a good quality flexible tile adhesive install the tanking boards to the chipboard floor
30. Make sure the tanking boards are 100% bonded to the chipboard
31. When installing the tanking boards it is best to lay them in a brick bond pattern
32. Allow the adhesive to dry
33. Paint the joints on the floor using the supplied primer including around the edge of the room
34. Paint a minimum of 75mm either side of the joints
35. Allow a minimum of 4 hours to dry
36. Apply the supplied tanking tape over the primed joints ensuring good adhesion
37. Fit the pre made corners to your room where necessary
38. Both internal and external corners are supplied with the tanking kit
39. Use the tanking tape to seal around the edge of the room
40. The tape can be folded 90 degrees to be secured water tight to the wall and floor
41. If using tanking boards on the wall, repeat the steps for priming and fitting the tanking tape
42. Depending on tiling preferences you may decide to tile the walls prior to the floor tiles
43. Install your floor tiles using a good quality flexible tile adhesive
44. Ensure the tiles are fitted with a 100% bond between the tiles and tanking boards
45. You may need to cut the tiles within the tray area to follow the natural slope of the tray
46. Alternatively smaller tiles such as mosaics can be used without the need for cutting

* Assuming Livinghouse standard 6mm thick tanking boards for the floor are being used.

- The above instructions are assuming a complete Aquafloor tanking kit system is being installed
- The Aqua floor tanking system is available as a tray only kit, 6m2 or 10m2 kits
- The Aqua floor tanking system is suitable for both ground and upper floor installation and is also suitable for concrete sub-floors


TO PURCHASE the wetroom kit, click on the links below for immediate delivery.


Additionally, take a look at the extensive range of bathroom accessories.

Wet rooms
Wetroom Tray Kit Prices
Wetroom Shower Panels
Walk In Shower Enclosures
Wetroom Underfloor Heating
Wetroom Drains
Wetroom Accessories
Showers
Wetroom Shower Panels
Shower Enclosures
Shower Doors
Recess Shower Partitions
Shower Screens
Shower Trays
Shower Heads
Shower Columns
Shower Controls
Shower Accessories
Bathroom / Shower Wall Panels
Shower Pumps
Bathroom
Bathroom Modular Furniture
Modern Bathroom Suites
Baths
Bathroom Wash Basins
Wash Stands
Bathroom Toilets
Bathroom Bidets
Bathroom Taps
Bath Screens
Mirror Cabinets & mirrors
Heated Towel Rails
Bath Side Panels
Concealed Cisterns kits
Bathroom Accessories
Glass Wash Bowls
Stone Wash Bowls
Bathroom TV
Italian Bathroom Furniture
View our microsite
Towel Rails
Steam Room / Steam Showers
Radiators
Designer Radiators
Traditional Heating Radiators
Steel Column Radiators
Glass Heating Radiators
Wall Tiles
Stone Mosaic
Pebble Tiles
Wall Tiles
Glass Blocks
Glass Blocks
Stone Flooring
Limestone Flooring Tiles
Travertine Flooring Tiles
Polished Marble Flooring Tiles
Slate Flooring Tiles
Stone Mosaic Flooring Tiles
Granite Flooring Tiles
Porcelain Flooring Tiles
Terracotta Flooring Tiles
Wood Flooring
Solid Wood Flooring
Engineered Wood Flooring
3D Decorative Wall Panels
Victorian Encaustic Tiles
Leather Floor and Wall Tiles
Electrical Light Switches & Plug Sockets
Underfloor Heating
Garden
Garden Paving
Promotion
New Products


|
Copyright 2003 © Wet rooms and walk-in showers | contemporary bathroom furniture | bathroom design ideas
Unit 3, Ashfield Trading Estate, Salisbury, Wiltshire, SP2 7HL Italian Designer Bathrooms

MfP Website Marketing
